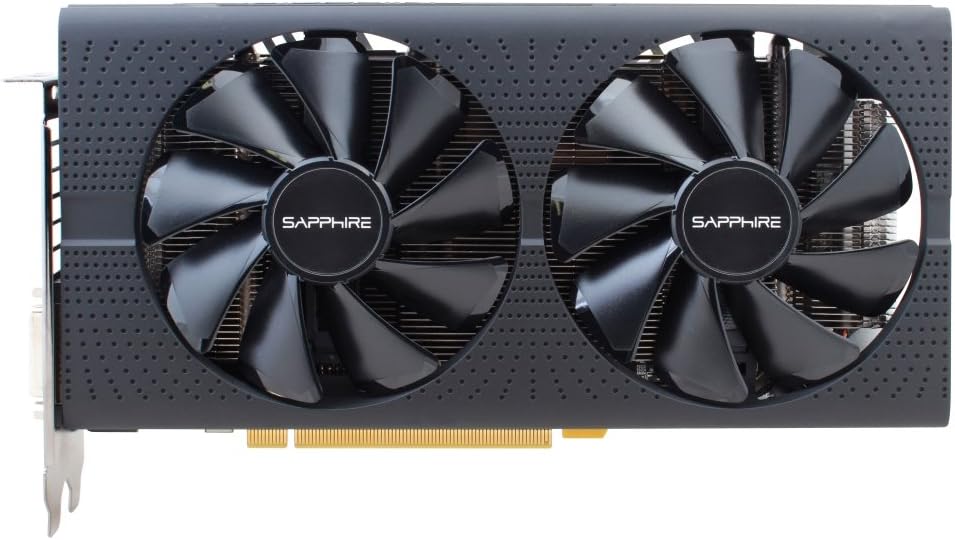

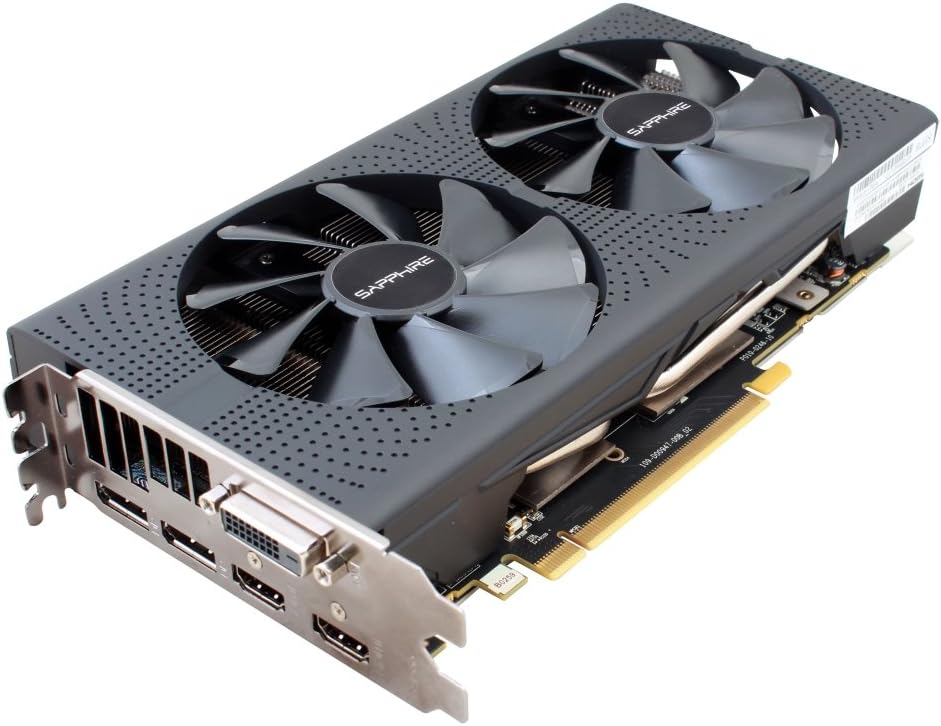

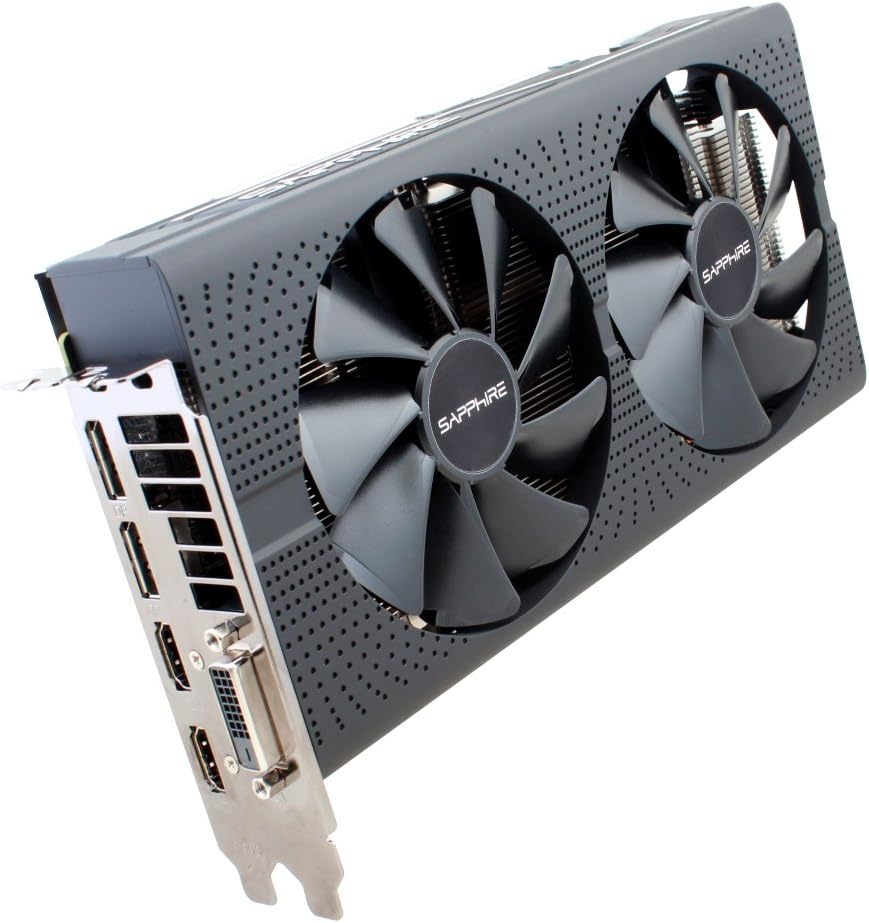

Sapphire 11265-09-20G Pulse Radeon RX 580 4 GB

• Engine Clock: Up to 1366 MHz (Boost)

• Memory: 4GB GDDR5 7000 MHz Effective

• 2304 Stream Processors

• Dual-X Cooling

• Quick Connect

GPU

RX 580, 14 nm FinFET
4th Graphics Core Next (GCN)

Engine Clock

Up to 1366 MHz, Boost

Stream Processors

2304

Memory Size/Bus

4GB GDDR5/256-bit

Memory Clock

7000 MHz effective

Displays

Maximum 5 Outputs

Interface

PCI-Express 3.0

Resolution

• DisplayPort: 5120×2880@60Hz

• HDMI: 4096×2160@60Hz

• DVI:2560x1600@60Hz

Output

• 1x DVI-D

• 2x HDMI

• 2x DisplayPort 1.4

BIOS Support

• UEFI

API

• OpenGL® 4.5

• OpenCL 2.0

• DirectX® 12

• Shader Model 5.0

Game Index

1440p gaming

Sapphire Features

• Dual-X Cooling

• Long Life Dual Ball Bearing Fans

• Intelligent Fan Control III

• Quick Connect System

• Long Life Capacitor

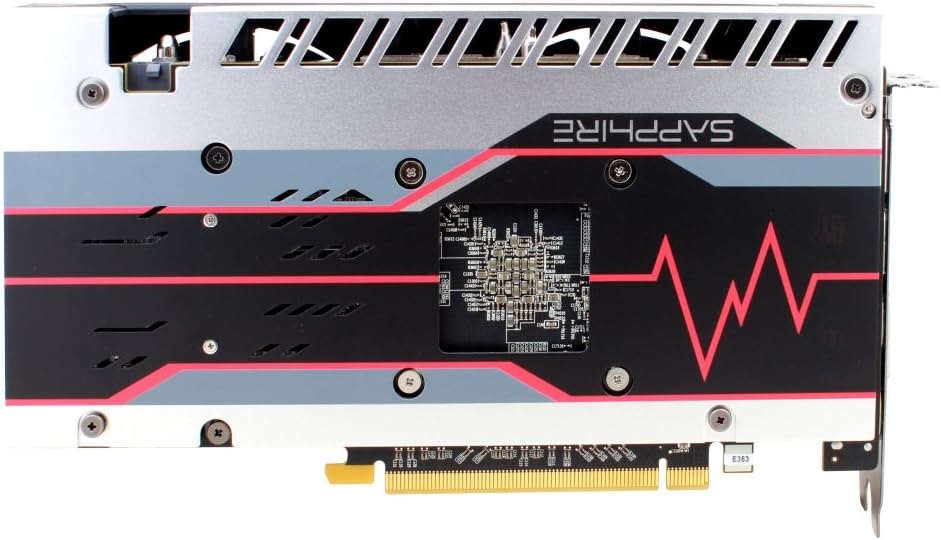

• Backplate

• Black Diamond 4 Chokes

• Fuse protection



AMD Features

• Radeon™ VR Ready Premium

• Radeon™ Software

• Radeon™ FreeSync Technology

• AMD LiquidVR™ Technology

• 4th Gen GCN Architecture

• Radeon™ Chill

• Radeon™ ReLive DirectX® 12 Technology

• AMD Eyefinity Technology (Gaming)

• AMD App Acceleration

• AMD CrossFire™ Technology

• AMD CrossFire™ (Bridgeless)

• 3rd Gen 14nm Process Technology

• OpenCL 2.0

• OpenGL 4.5

• AMD PowerTune Technology

• TrueAudio Next

• Unified Video Decoder (UVD)

• Video Code Engine (VCE)

• Virtual Super Resolution

• The Vulkan® API

Cooler Type

• Dual-X Cooling Technology

• Two ball bearing fan

• Fan Quick Connect

Form Factor

• 2 Slots Occupied

• 230X125X40 Dimension/mm

Power Consumption

• <225W

OS

Windows®  11, 10, Windows®  7, 64bit operating system required

System Requirement

• 500 Watt or greater power supply (Recommended)

• 1 x 8-pin Power Connector

• PCI Express® compliant motherboard with one x16 graphics slot
